  • Bottom Suction Submersible Pump

Bottom Suction Submersible Pump

Contact Us
PREV：Electric Appliance Special Submersible PumpNEXT：Environmental Protection A/C Hich Foot Pump
  • Applications
  • Parameters
  • Contact Us

Application:
Suitable for a wide range of applications including industrial air conditioning,machinery coling,fountain landscaping,and aquariums.
1. The bottom water iniet cover is 360°surrounded and has a low water level design.It can pump the water level as low as 1CM,making the water cleaning process cleaner and better at removing impurities in the water.
2. Sealed resin potting provides excellent insulation, preventing safety hazards.
3. Built-in heat protector prevents power failure due to continuous dry burning caused by water shortage.
4. The outer shell is made of new ABS plastic, ensuring durability.
5. The shaft is made of high-quality ceramic, with a long lifespan, corrosion-resistant, and wear-resistant.

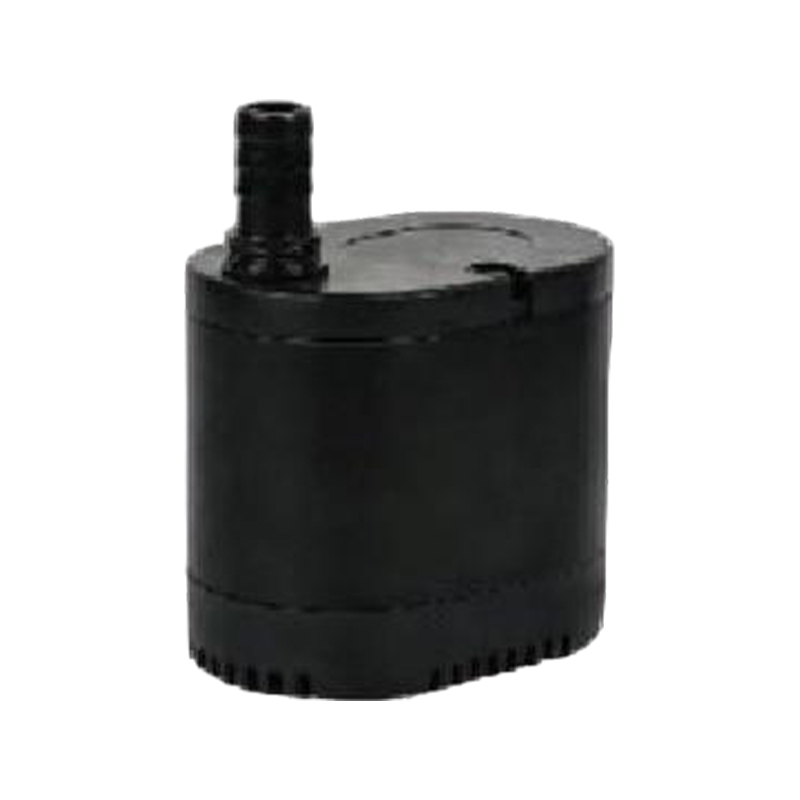

image44 Item DYH‑18A
MODEL DYH‑18A
WATTS 18W
MAX HEAD 1.6M/1.8M/2M/2.2M
MAX FLOW 1000L/H
VOLTAGE/FREQUENCY AC 12‑24V/110V‑120V/127V/220V‑240V, 50Hz/60Hz
SIZE 83×57×108mm
OUTLET DIAMETER φ9/13/19/21mm

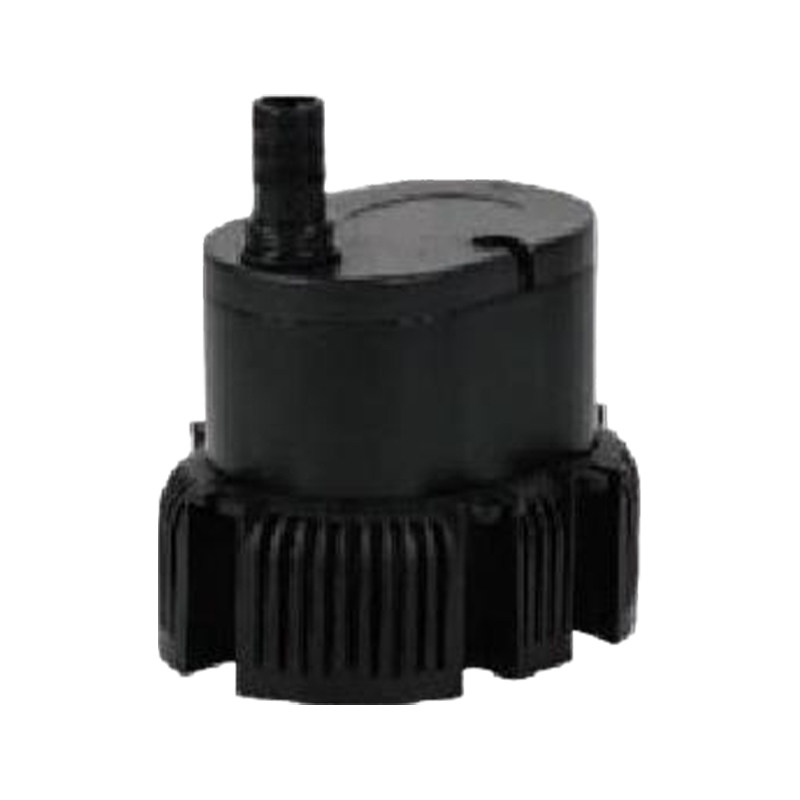

image46-cGGN Item DYH‑22C
MODEL DYH‑22C
WATTS 22W
MAX HEAD 2M/2.2M
MAX FLOW 1200L/H
VOLTAGE/FREQUENCY AC 12‑24V/110V‑120V/127V/220V‑240V, 50Hz/60Hz
SIZE 102×73×107mm
OUTLET DIAMETER φ9/13/19/21mm

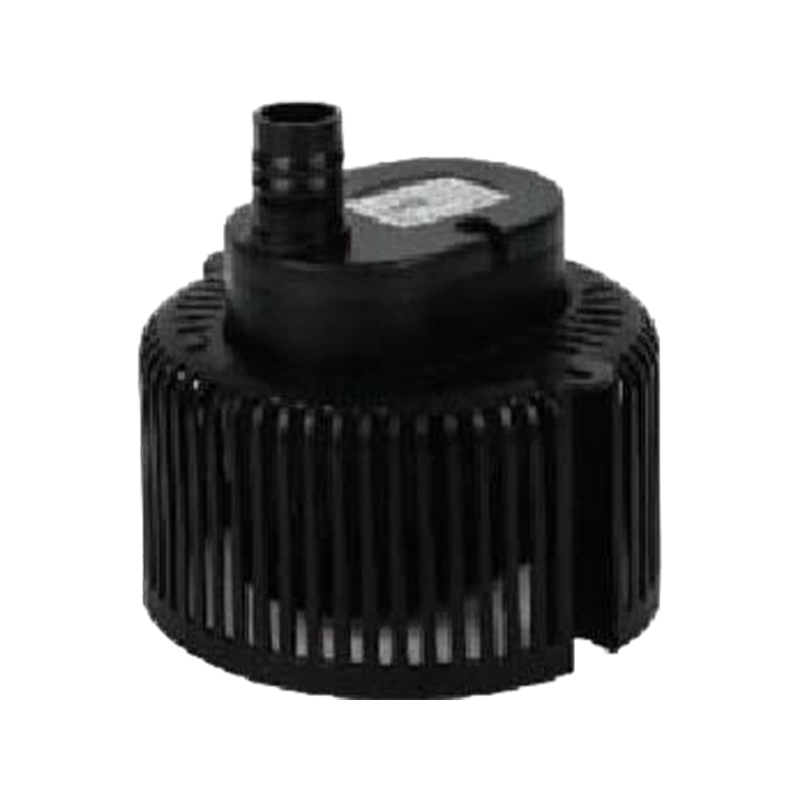

image48-labn Item DYH‑25
MODEL DYH‑25
WATTS 25W/30W
MAX HEAD 2M/2.2M
MAX FLOW 1500L/H
VOLTAGE/FREQUENCY AC 12‑24V/110V‑120V/127V/220V‑240V, 50Hz/60Hz
SIZE 117×123×125mm
OUTLET DIAMETER φ9/13/19/21mm

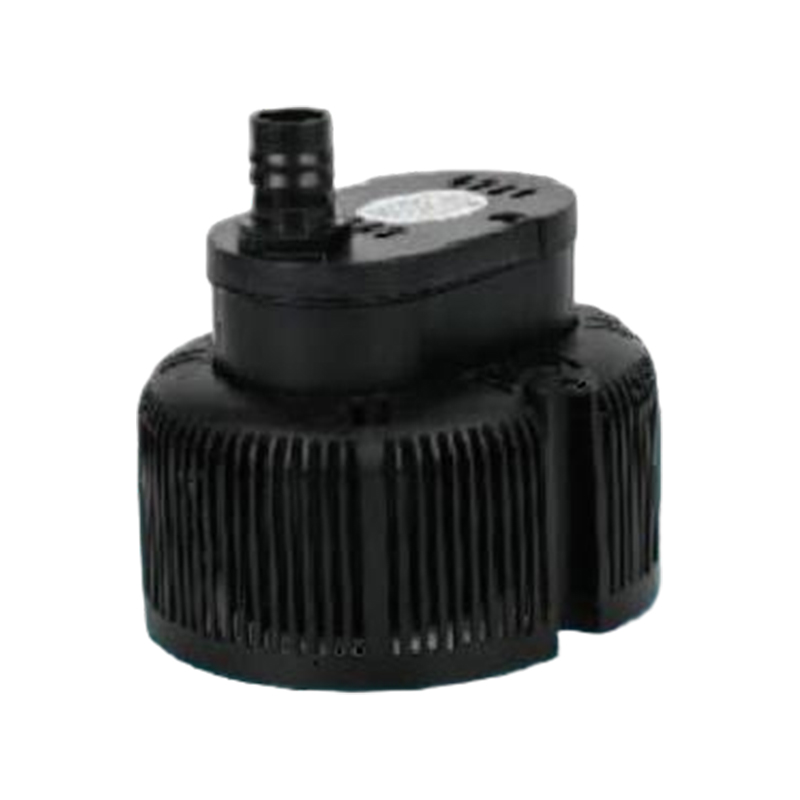

image50-5FJE Item DYH‑45
MODEL DYH‑45
WATTS 45W
MAX HEAD 2.5M/2.8M
MAX FLOW 2200L/H
VOLTAGE/FREQUENCY AC 12‑24V/110‑120V/127V/220‑240V/380V, 50Hz/60Hz
SIZE 137×123×132mm
OUTLET DIAMETER φ13/16/19/21mm

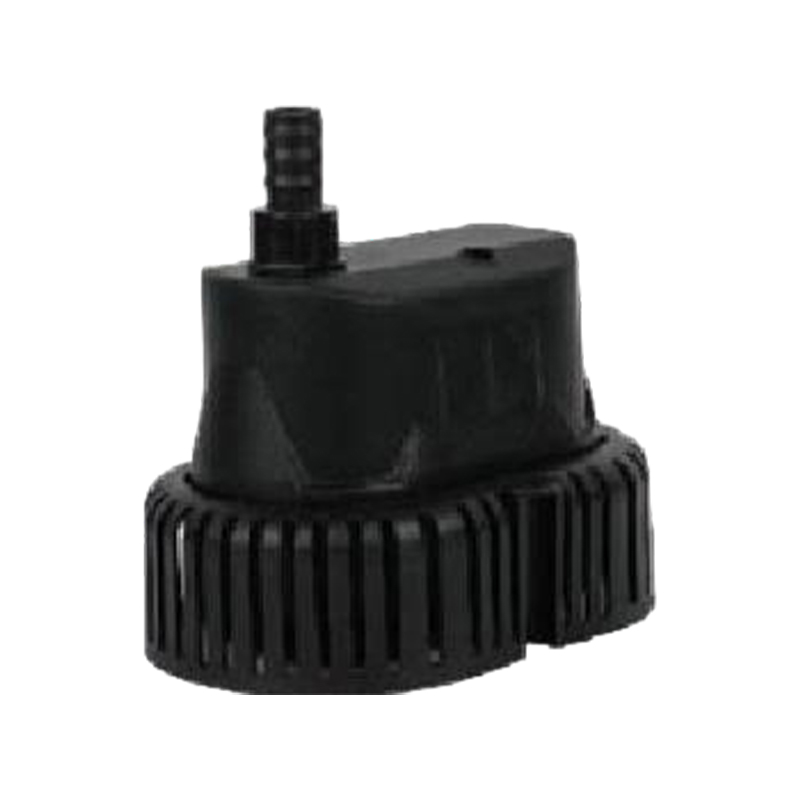

image52-xKwD Item DYH‑45
MODEL DYH‑45
WATTS 45W
MAX HEAD 2.5M/2.8M
MAX FLOW 2200L/H
VOLTAGE/FREQUENCY AC 12‑24V/110‑120V/127V/220‑240V/380V, 50Hz/60Hz
SIZE 154.5×116×152mm
OUTLET DIAMETER φ16/19mm

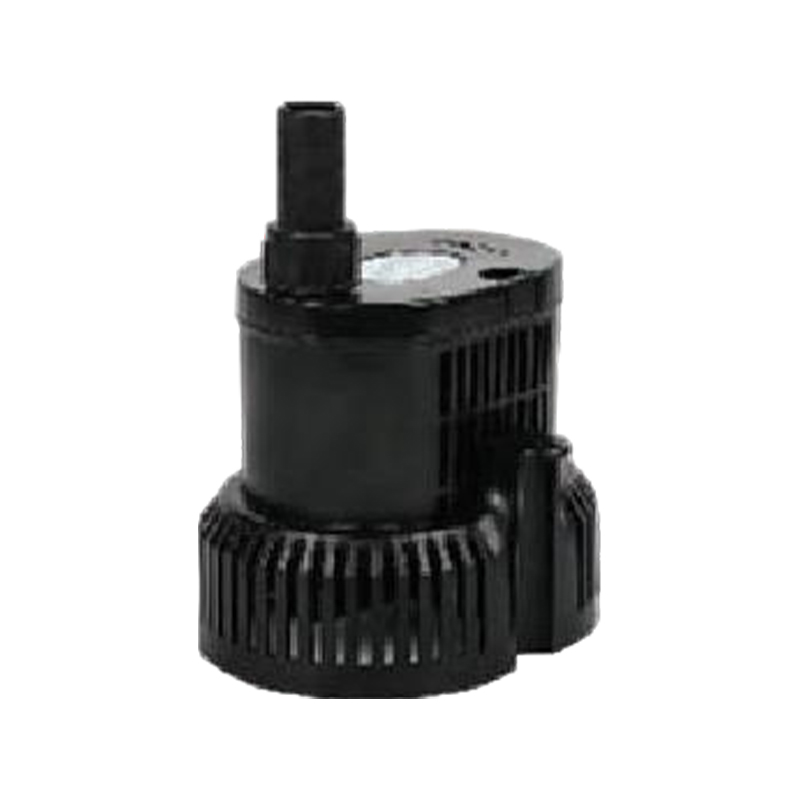

image54-TN2E Item DYH‑45
MODEL DYH‑45
WATTS 45W
MAX HEAD 2.5M/2.8M
MAX FLOW 2200L/H
VOLTAGE/FREQUENCY AC 12‑24V/110‑120V/127V/220‑240V/380V, 50Hz/60Hz
SIZE 129×120.5×156mm
OUTLET DIAMETER φ16/19mm

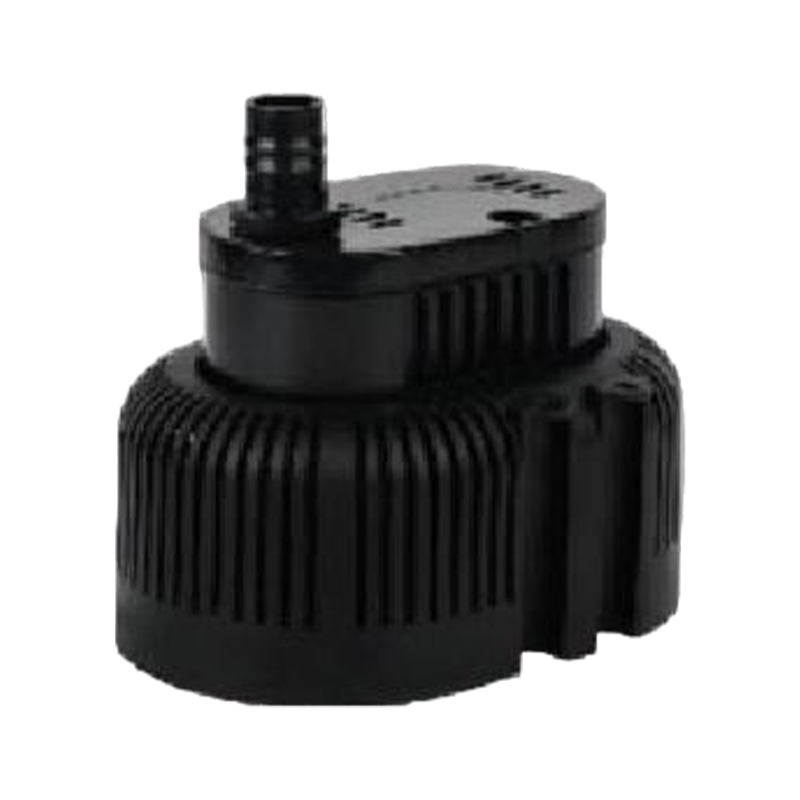

image56-nqcJ Item DYH‑60
MODEL DYH‑60
WATTS 60W
MAX HEAD 2.5M/2.8M/3M
MAX FLOW 2800L/H
VOLTAGE/FREQUENCY AC 12‑24V/110‑120V/127V/220‑240V/380V, 50Hz/60Hz
SIZE 150×118.5×132.5mm
OUTLET DIAMETER φ13/16/19/21mm

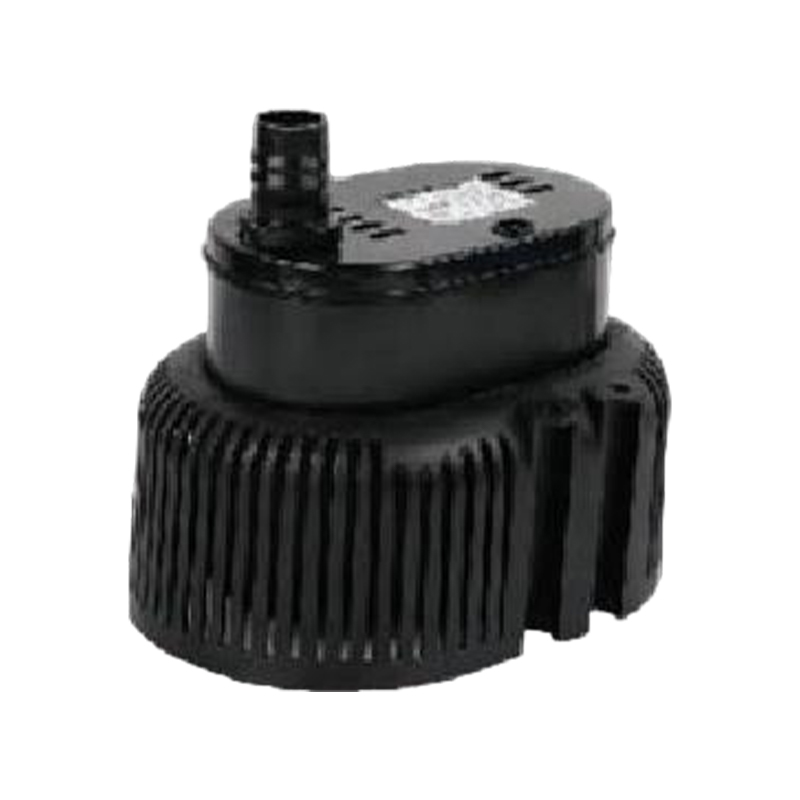

image58-zjws Item DYH‑80
MODEL DYH‑80
WATTS 80W
MAX HEAD 3/3.2M
MAX FLOW 2800L/H
VOLTAGE/FREQUENCY AC 12‑24V/110‑120V/127V/220‑240V/380V, 50Hz/60Hz
SIZE 150×121×138mm
OUTLET DIAMETER φ13/16/19/21mm

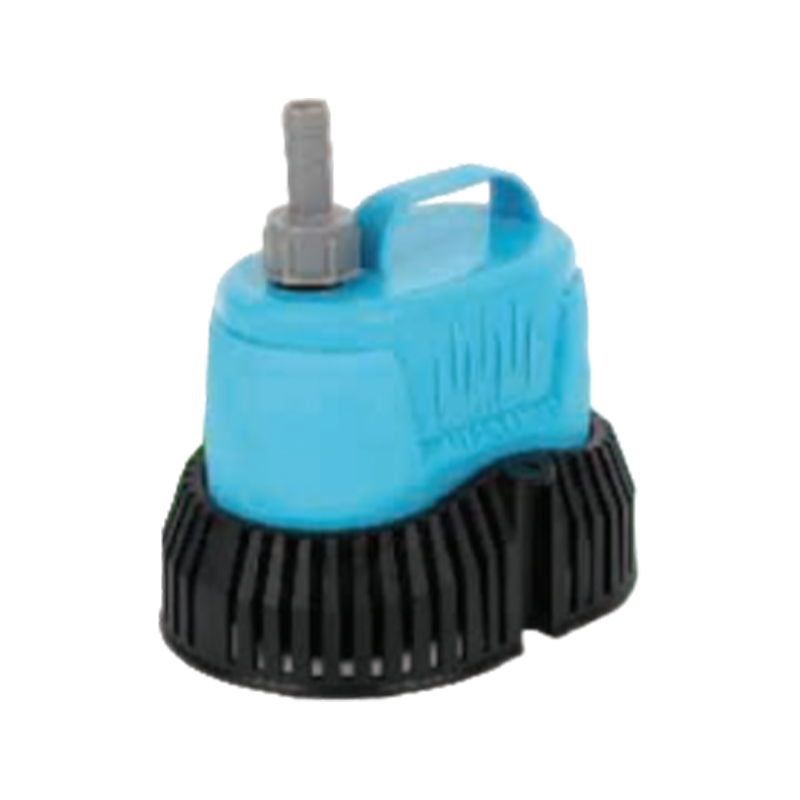

image60-Gixw Item DYH‑45
MODEL DYH‑45
WATTS 45W
MAX HEAD 2.3M/2.5M
MAX FLOW 2200L/H
VOLTAGE/FREQUENCY AC 12‑24V/110‑120V/127V/220‑240V, 50Hz/60Hz
SIZE 156×119×150mm
OUTLET DIAMETER φ13/16/19mm

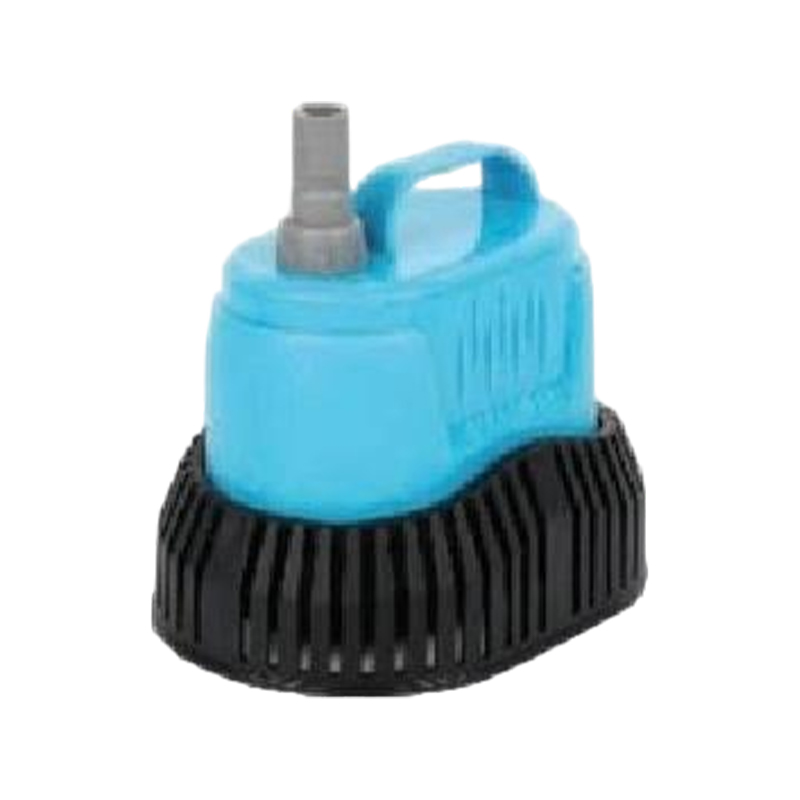

image62-HQkE Item DYH‑25
MODEL DYH‑25
WATTS 25W
MAX HEAD 1.8M/2.1M/2.2M
MAX FLOW 1500L/H
VOLTAGE/FREQUENCY AC 12‑24V/110‑120V/127V/220‑240V, 50Hz/60Hz
SIZE 105×105×118mm
OUTLET DIAMETER φ13mm

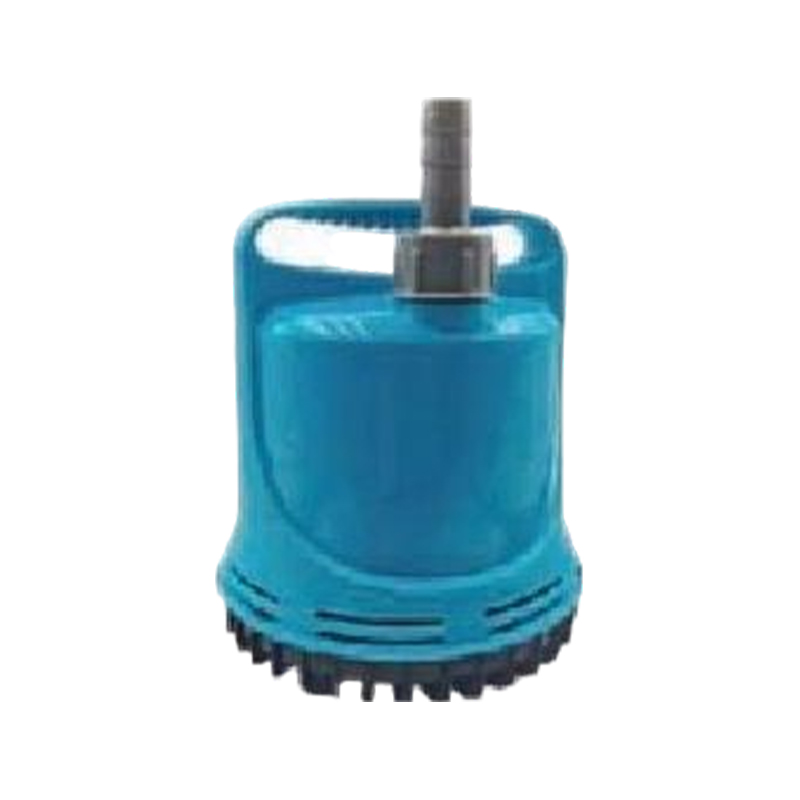

image64-kMnq Item DYH‑45
MODEL DYH‑45
WATTS 45W
MAX HEAD 2.5M
MAX FLOW 2200L/H
VOLTAGE/FREQUENCY AC 12‑24V/110‑120V/127V/220‑240V, 50Hz/60Hz
SIZE 120×120×150mm
OUTLET DIAMETER φ13/16/19mm

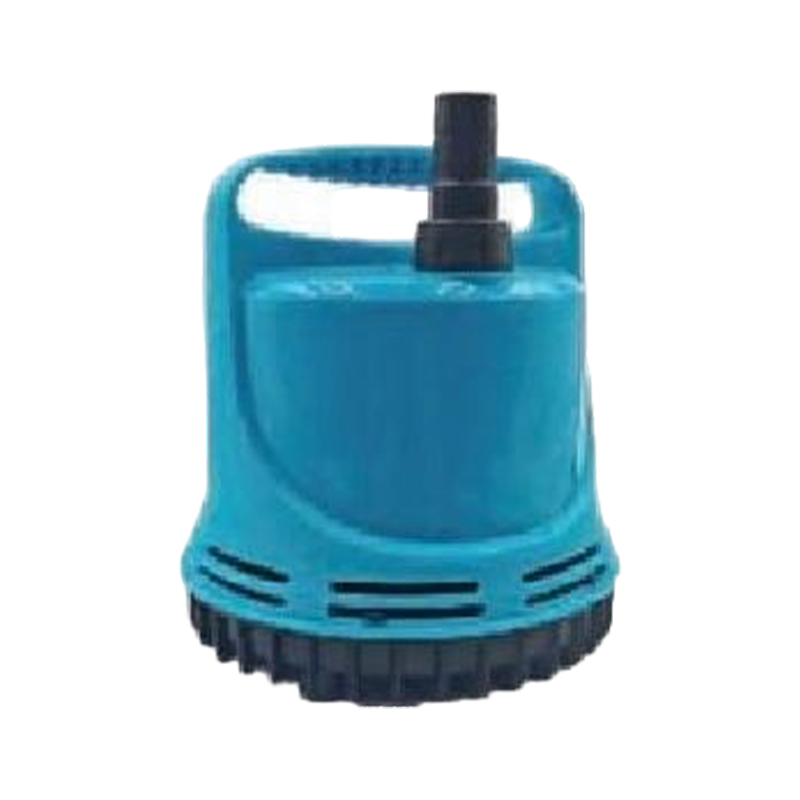

image66-Mdhx Item DYH‑25
MODEL DYH‑25
WATTS 25W
HMAX 1.8M/2M/2.1M/2.2M
QMAX 1500L/H
VOLTAGE/FREQUENCY AC 12‑24V/110‑120V/127V/220‑240V, 50Hz/60Hz
SIZE 105×105×118mm
OUTLET DIAMETER φ13mm

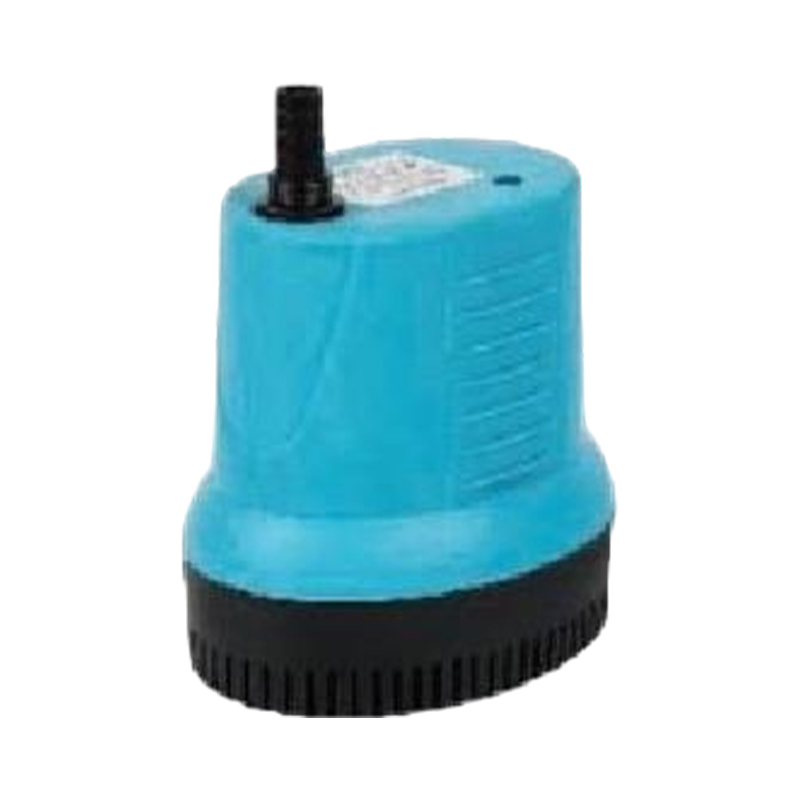

image68-TcF3 Item DYH‑45W
MODEL DYH‑45W
WATTS 45W
HMAX 2.5M
QMAX 2200L/H
VOLTAGE/FREQUENCY AC 12‑24V/110‑120V/127V/220‑240V, 50Hz/60Hz
SIZE 136×103×164mm
OUTLET DIAMETER φ13mm

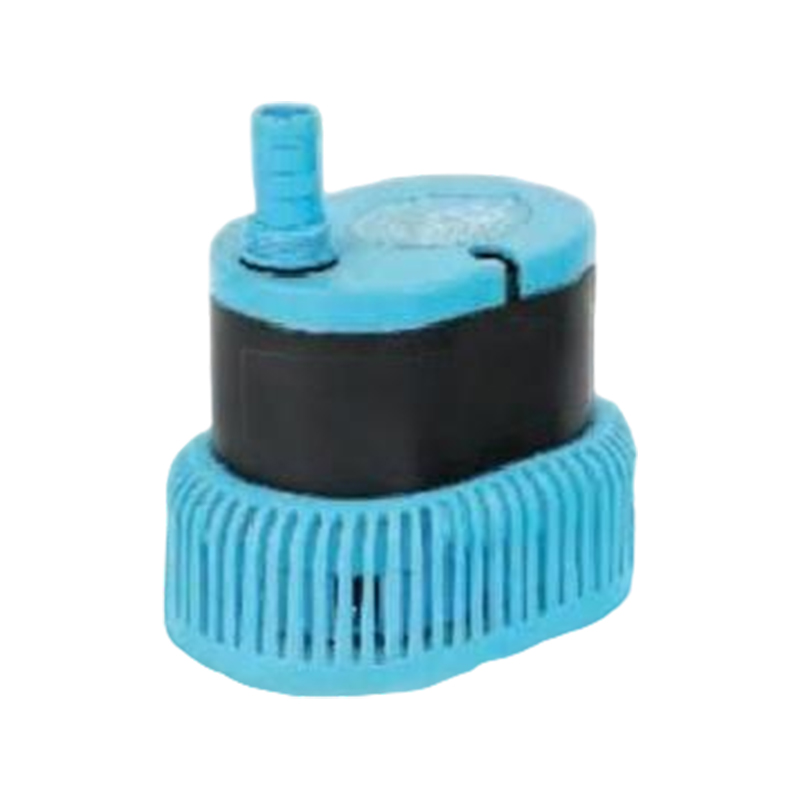

image70-NAvf Item DYH‑22W
MODEL DYH‑22W
WATTS 22W
HMAX 1.8M/2M/2.2M
QMAX 1200L/H
VOLTAGE/FREQUENCY AC 12‑24V/110‑120V/127V/220‑240V, 50Hz/60Hz
SIZE 103×72×107mm
OUTLET DIAMETER φ9/13/19/21mm

Can be customized according to requirements.
