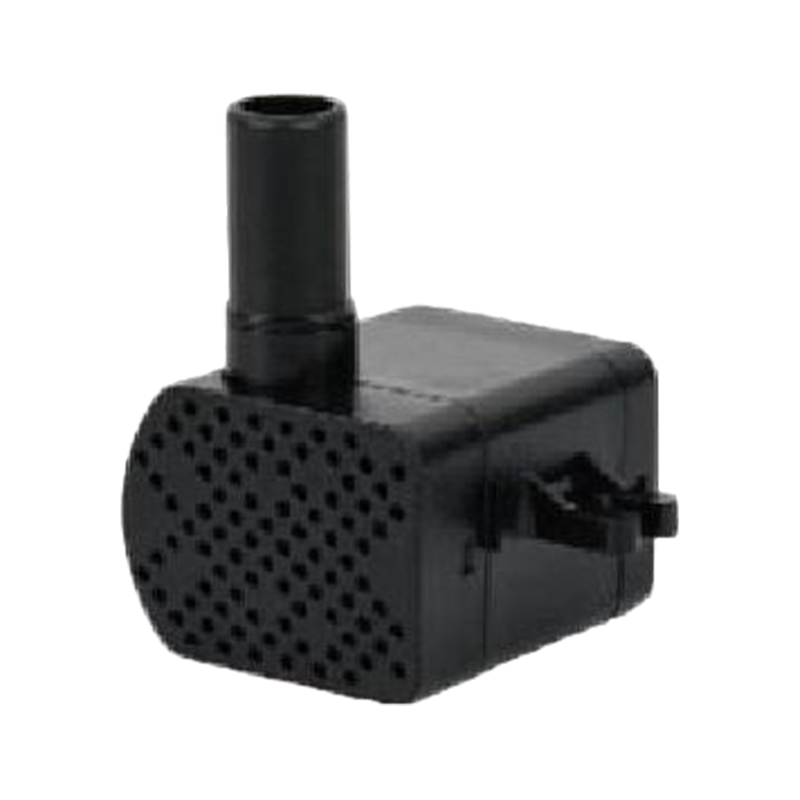

Electric Appliance Special Submersible Pump

PREV：Industrial Air Cooler Pump NEXT：Bottom Suction Submersible Pump

Specification
Applications
Parameters
Contact Us

Features:
1.Sealed resin potting provides excellent insulation,preventing safety hazards.
2.Built-in heat-protector prevents power failure due to continuous dry burning caused by water shaortage.
3.Low-noise operation,silicone suction cup for shock absorption,enjoy a quiet life
4.Powered by copper motor,highly practical,stable operation.
5.Compact and concealed,with a detachable design,easy to clean and maintain.

Can be customized according to requirements.

Appication:
household eco-friendly air conditioners,cooler fan,industrial eco-friendly air conditioners,misting fans,bean sprout machines,mechanical cooling and other water-circulating electrical equipment.

	Item	DYH‑4
	MODEL	DYH‑4
	WATTS	4W
	MAX HEAD	0.5M/0.65M/0.8M
	MAX FLOW	130L/H
	VOLTAGE/FREQUENCY	AC 12‑24V/110V‑120V/127V/220V‑240V, 50Hz/60Hz
	SIZE	45×46×55mm
	OUTLET DIAMETER	φ9/13mm

	Item	DYH‑4
	MODEL	DYH‑4
	WATTS	4W
	MAX HEAD	0.5M/0.65M/0.8M
	MAX FLOW	130L/H
	VOLTAGE/FREQUENCY	AC 12‑24V/110V‑120V/127V/220V‑240V, 50Hz/60Hz
	SIZE	45×46×55mm
	OUTLET DIAMETER	φ9/13mm

	Item	DYH‑5
	MODEL	DYH‑5
	WATTS	5W
	MAX HEAD	0.8M/0.9M
	MAX FLOW	160L/H
	VOLTAGE/FREQUENCY	AC 12‑24V/110V‑120V/127V/220V‑240V, 50Hz/60Hz
	SIZE	47×70×68mm
	OUTLET DIAMETER	φ9mm

	Item	DYH‑5
	MODEL	DYH‑5
	WATTS	18W
	MAX HEAD	0.8M
	MAX FLOW	1000L/H
	VOLTAGE/FREQUENCY	AC 12‑24V/110V‑120V/127V/220V‑240V, 50Hz/60Hz
	SIZE	79×61×105mm
	OUTLET DIAMETER	φ13mm
