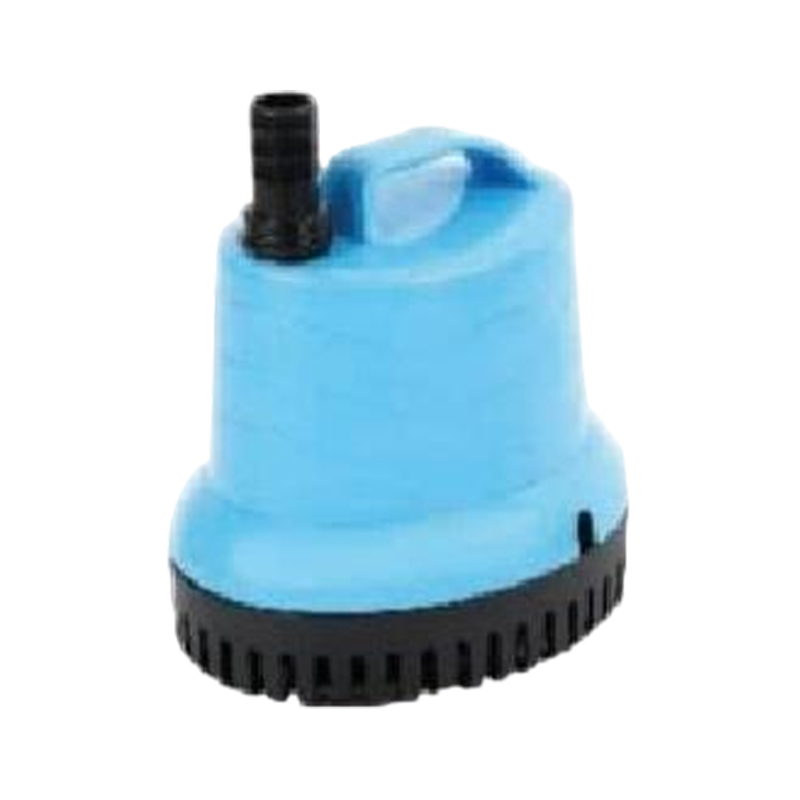

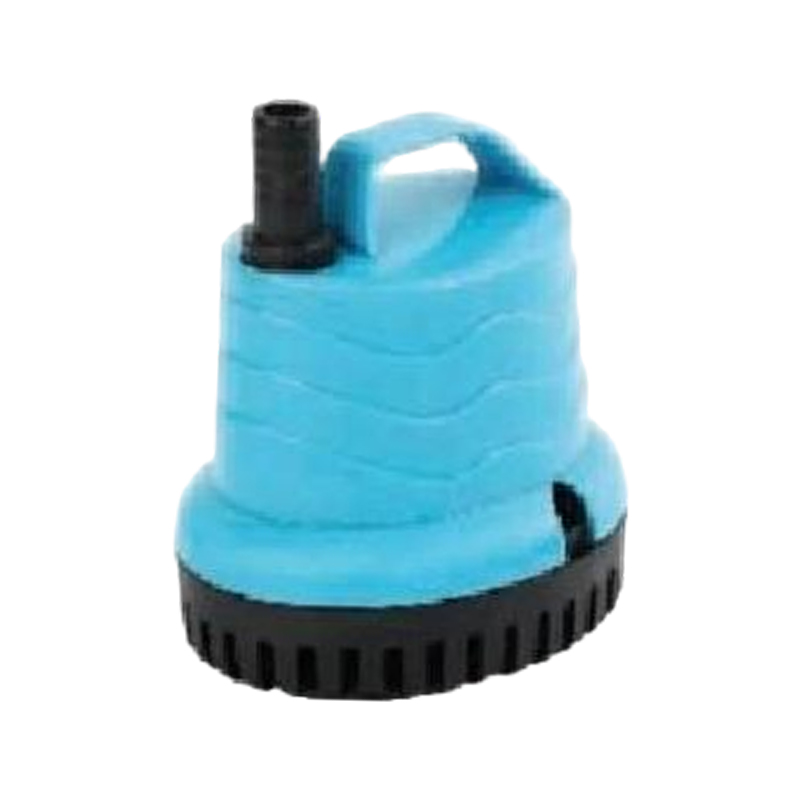

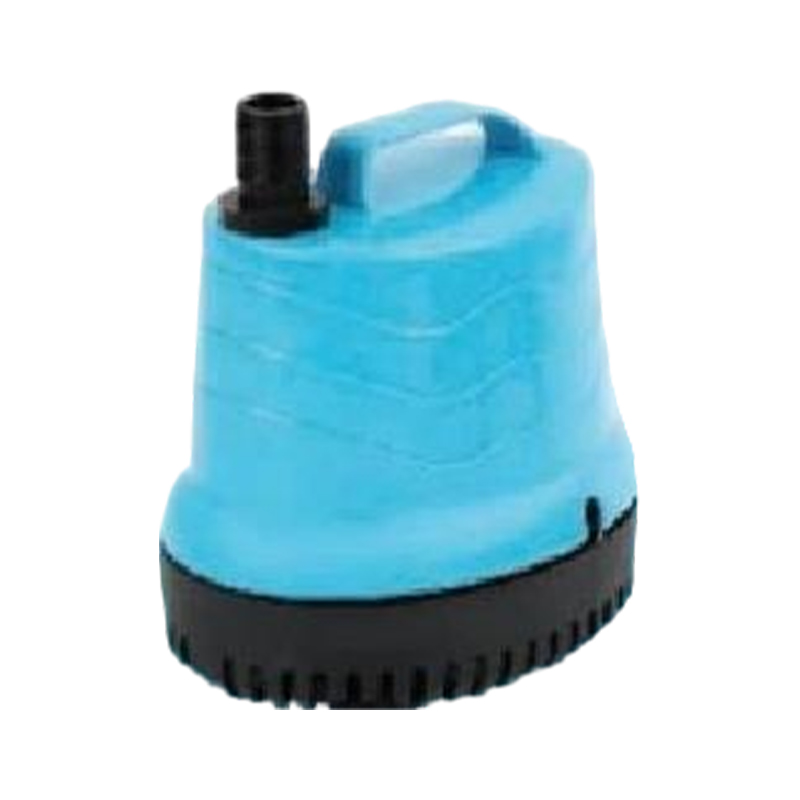

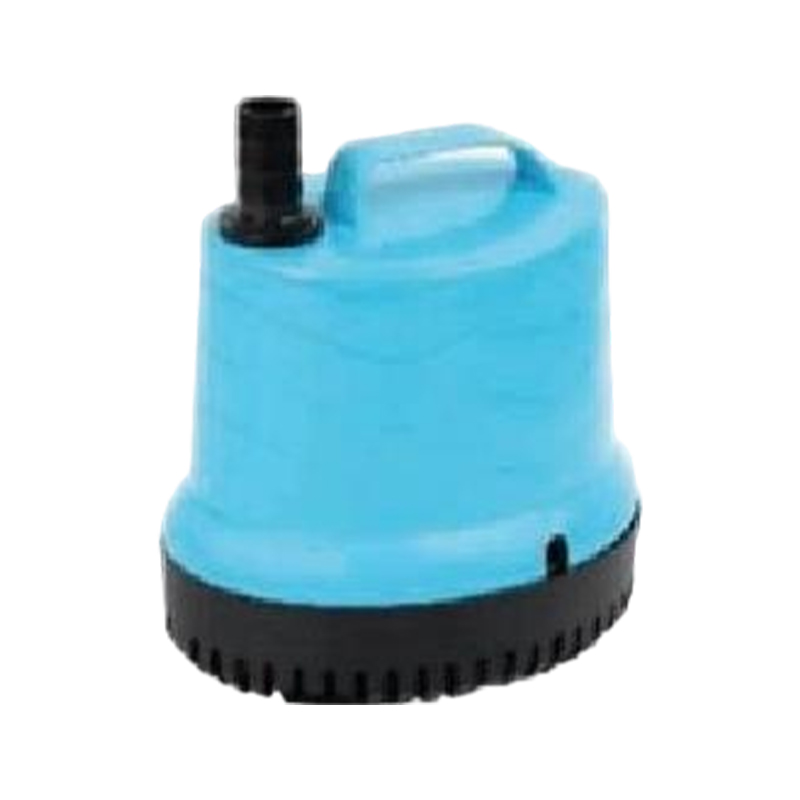

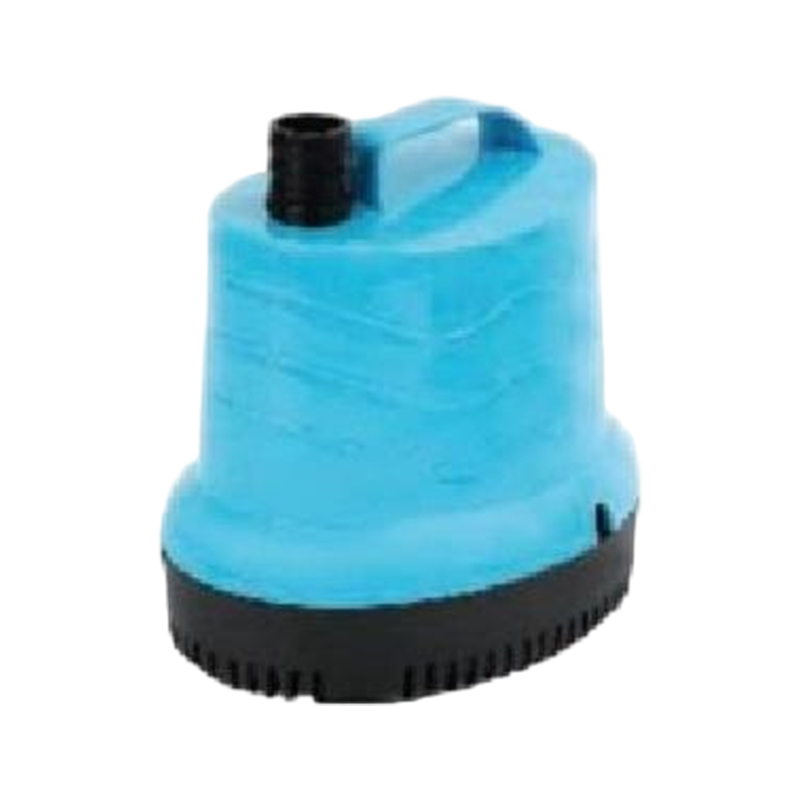

Aquarium Water Pump

PREV：DC Brushless Submersible Pump NEXT：Brushless DC Motor（BLDC）

Applications
Parameters
Contact Us

Application:
Fish tanks, fish ponds, top filters, etc.
1. The bottom water inlet cover is 360°surounded and has a low water level design. It can pump the water level as low as 1CM, making the water cleaning
process cleaner and better at removing impurities in the water.
2. Sealed resin potting provides excellent insulation, preventing safety hazards.
3. Built-in heat protector prevents power failure due to continuous dry burning caused by water shortage.
4. The outer shell is made of new ABS plastic, ensuring durability.
5. Portable design: The ergonomic and streamlined handle is convenient for carrying.

	Item	DYH‑5
	MODEL	DYH‑5
	WATTS	5W
	H MAX	0.9M
	Q MAX	160L/H
	VOLTAGE/FREQUENCY	AC 12V/24V/100V/110V/120V/127V/220V/230V/240V 50Hz/60Hz
	SIZE	69×58×85mm
	OUTLET DIAMETER	φ9mm

	Item	DYH‑18
	MODEL	DYH‑18
	WATTS	18W
	H MAX	1.6M/1.8M/2M/2.2M
	Q MAX	1000L/H
	VOLTAGE/FREQUENCY	AC 12V/24V/100V/110V/120V/127V/220V/230V/240V 50Hz/60Hz
	SIZE	103×83×124mm
	OUTLET DIAMETER	φ9/13/19/21mm

	Item	DYH‑45
	MODEL	DYH‑45
	WATTS	45W
	H MAX	2.3M/2.5M/2.8M
	Q MAX	2200L/H
	VOLTAGE/FREQUENCY	AC 12V/24V/100V/110V/120V/127V/220V/230V/240V 50Hz/60Hz
	SIZE	126×98×155mm
	OUTLET DIAMETER	φ13/16/19/21mm

	Item	DYH‑45
	MODEL	DYH‑45
	WATTS	45W
	H MAX	2.3M/2.5M/2.8M
	Q MAX	2200L/H
	VOLTAGE/FREQUENCY	AC 12V/24V/100V/110V/120V/127V/220V/230V/240V 50Hz/60Hz
	SIZE	141×108×160mm
	OUTLET DIAMETER	φ13/16/19/21mm

	Item	DYH‑80
	MODEL	DYH‑80
	WATTS	80W
	H MAX	3.2M/3.6M
	Q MAX	2800L/H
	VOLTAGE/FREQUENCY	AC 12V/24V/100V/110V/120V/127V/220V/230V/240V 50Hz/60Hz
	SIZE	175×133×179mm
	OUTLET DIAMETER	φ13/16/19/21mm

Can be customized according to requirements.
